Product Overview:The Bus Tie Switchgear is a critical component in medium-voltage (MV) power distribution systems, designed to interconnect and isolate multiple busbar sections. Rated for 10KV (IEC) to 15KV (ANSI) applications, it ensures load balancing, enhanced power continuity, and rapid system reconfiguration during faults or maintenance. Compliant with IEC 62271-200, GB 3906, and ANSI C37.20.2 standards, it is widely used in industrial, commercial, and utility networks.

Rated Voltage : 10KV/11KV (IEC) | 12KV/15KV (ANSI)
Rated Current : 630A–4000A (copper busbar rating)
Short-Time Withstand : 25kA–50kA/1–3s
Power Frequency Withstand : 42KV/1min (12KV class)
Protection Class  :  IP4X (enclosure) | IP2X (compartments)
Mechanical Life : ≥10,000 operations (circuit breaker)

Common Chinese ModelsKYN28A-12;XGN15-12

Product Introduction Technical Parameter Size

1. Product Description
        The Bus Tie Switchgear features a modular design, comprising busbar compartments, circuit breaker cells, cable chambers, and low-voltage control sections. Key components include:
Vacuum Circuit Breaker (VCB)
        Three-Position Switch (Disconnector/Earthing Switch)
        Current Transformers (CTs)
        Multifunction Protection Relay
        The enclosure is constructed from galvanized steel or Aluzinc, tested for internal arc resistance (IAC AFLR 40kA per IEC 62271-200). It supports IEC 61850 communication for SCADA integration and is widely deployed in data centers (Tier III/IV), oil & gas plants, and other critical facilities to minimize MTTR (Mean Time To Repair).

2. Product Functions
        Redundant Power Supply: Automatic Transfer Switching (ATS) ensures uninterrupted power between dual sources.
        Fault Isolation: Differential protection (87B) or overcurrent protection (51/51V) trips faulted sections within 20ms.
        Load Balancing: Maintains ±5% load deviation between busbars for optimal efficiency.
        Safety Interlocks: Mechanical “Five-Prevention” interlocking (per NFPA 70E) prevents misoperation.
        Energy Monitoring: Embedded Class 0.5S metering with Modbus RTU/DNP3.0 protocols.

3. Product Configuration
Primary Circuit
        Main busbars: TMY-100×10 copper with heat-shrink insulation.
        Breaker options: Permanent magnet (VS1) or spring-operated (VD4) mechanism.

Secondary System
        Standard microprocessor-based relay,with fault recording and GOOSE messaging.
        Optional wireless temperature sensors (TE Connectivity) or UHF partial discharge monitoring.

Environmental Adaptability
        High-altitude design (up to 4,000m).
        Anti-condensation heaters (auto-controlled).

4. Product Features
        Compact Layout: Vertical segregation (per IEC 62271-200) reduces footprint by 30%.
        High Reliability: Vacuum interruption (chopping current <5A), 100 full-capacity breaking cycles.
        Smart Maintenance: AR-assisted inspection via NFC-tagged parameters.
        Eco-Friendly: SF6-free design, compliant with GGGP (Global Greenhouse Gas Protocol).
        Customization: Left/right cable entry, dual bus-tie topologies available.

 Electrical Parameters

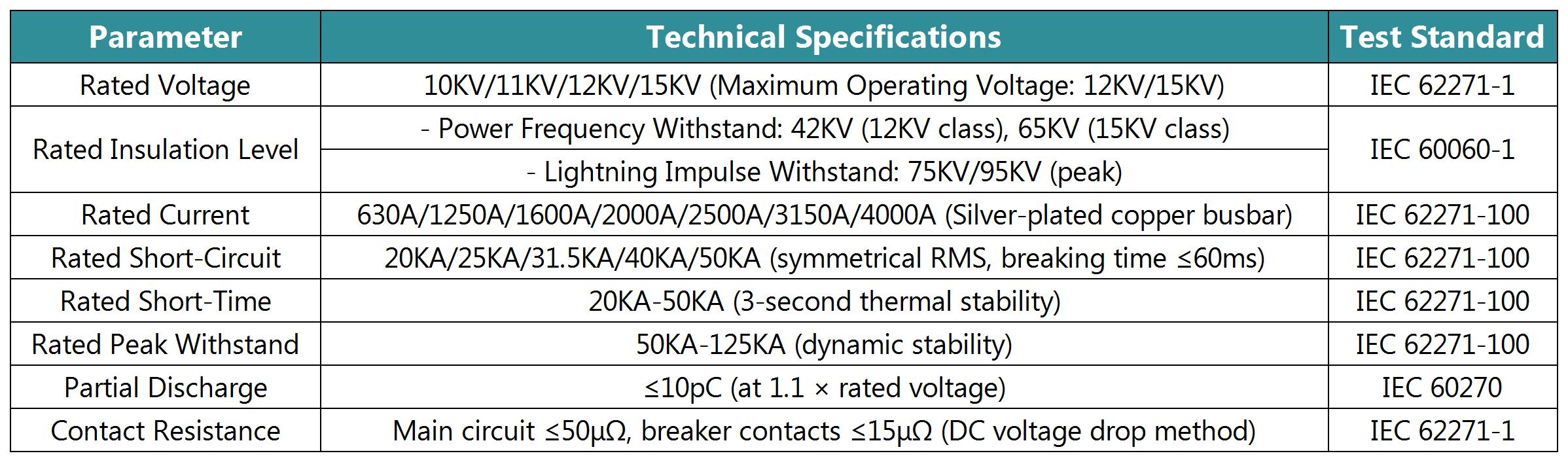

 15KV-10KV Bus Tie Switchgear Electrical Parameters

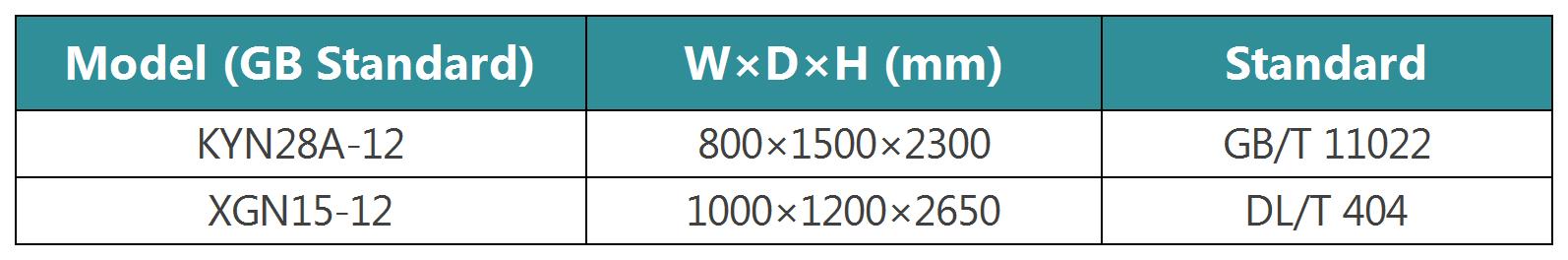

Common Chinese Models & Dimensions

Common Chinese Models & Dimensions
