The cost of constructing a 33kV/11kV substation varies depending on the region, scale, equipment configuration, and local market conditions. Below is a detailed cost breakdown in USD for international markets:
1. Main Transformer (Core Equipment)
5MVA Capacity: Approx. $60,000–$150,000
Oil-immersed transformer from China (e.g., Jiangsu Daelim brand) ~$60,000 (reference: Ghana project).
High-efficiency transformers with Canadian/EU certifications (CSA/UL standards) can cost up to $150,000, including shipping and tariffs.
Capacity Adjustment: Each additional 1MVA increases cost by ~$20,000–$30,000.
2. Switchgear & Protection Systems
33kV GIS (Gas-Insulated Switchgear): $50,000–$100,000

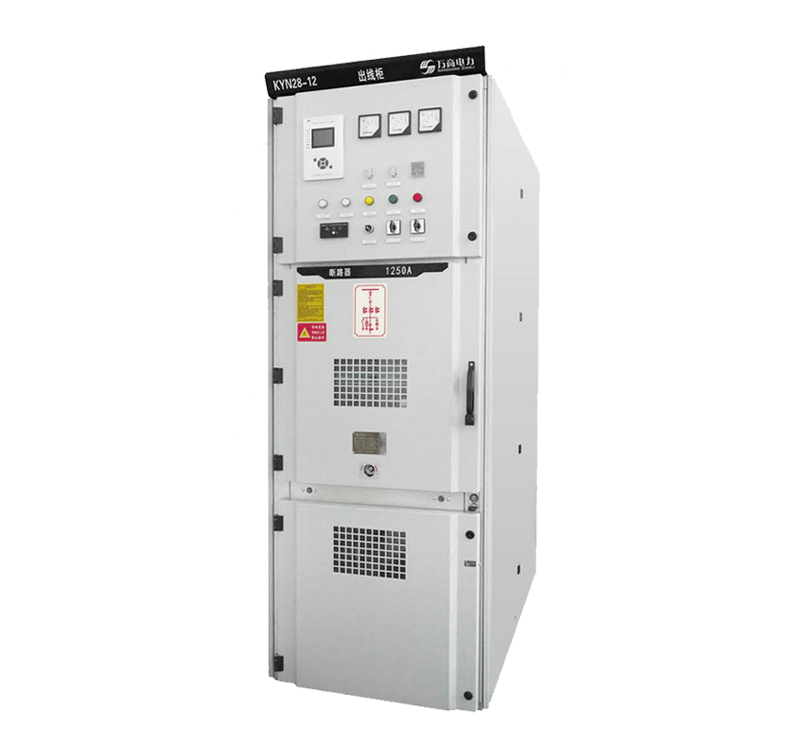

11kV Switchgear Panels: $30,000–$80,000
Relay Protection & Automation System: $20,000–$50,000
(South African tenders show protection systems account for 15–20% of total project cost).
3. Civil Works & Infrastructure
Substation Building: $30,000–$80,000 (varies by local labor and material costs)
Grounding & Lightning Protection: $10,000–$20,000
Cable Trenches & Wiring: $15,000–$30,000
(Civil works in African projects typically account for ~25% of costs).
4. Auxiliary Equipment
Reactive Power Compensation (SVG/SVC): $20,000–$50,000
Monitoring & SCADA System: $25,000–$60,000
Fire Safety & Security Systems: $10,000–$25,000
5. Transportation & Installation
International Shipping (China to Africa): $15,000–$40,000 (including insurance)
Local Installation & Commissioning: $30,000–$70,000 (depends on local labor rates).
6. Other Expenses
Design & Project Management Fees: 10–15% of total cost
Certifications & Compliance (e.g., IEC Standards): $5,000–$15,000
Spare Parts & Training: $10,000–$20,000
Total Cost Range
Small Substation (<5MVA): $200,000–$400,000
Medium Substation (5–10MVA): $400,000–$800,000
Large Substation (>10MVA): $1M+
Notes:
Costs in Europe/North America may be 30–50% higher due to labor and certification expenses.
Africa/Southeast Asia can reduce costs via Chinese supply chains but must consider tariffs and localization requirements.
For a precise budget, refer to local tender data (e.g., South Africa or Zimbabwe case studies).
