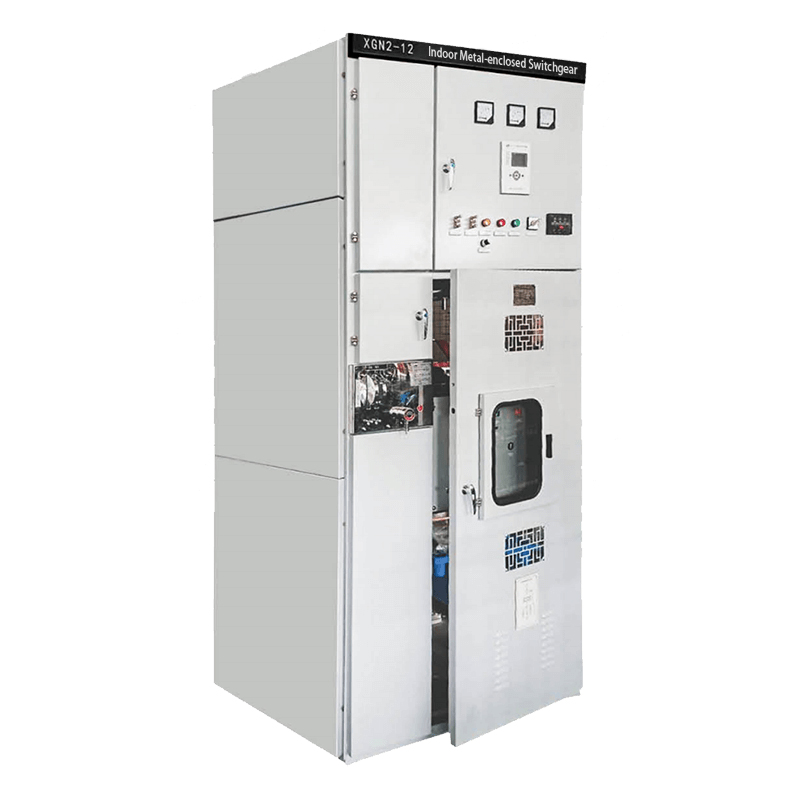

XGN2-12 Indoor Metal-enclosed Switchgear
XGN2-12 Indoor Metal-enclosed Switchgear

Product Overview:XGN2-12 is an indoor, metal-enclosed, air-insulated 12kV/50Hz/60HZ switchgear. Compliant with GB3906/IEC 60298, it handles frequent switching for power distribution in urban/industrial networks (e.g., residential areas, hospitals, substations). Supports single-bus, single-bus with bypass, or double-bus configurations.

Rated Voltage: 10KV,11KV,12 kV (max. operational voltage)
Rated Current: 630 A – 3150 A
Insulation Level:Power Frequency Withstand Voltage: 42 kV/1 min/Lightning Impulse Withstand Voltage: 75 kV
Breaking Capacity:Rated Short-Circuit Breaking Current: 16–40 kA/Rated Short-Circuit Making Current: 40–100 kA
Ingress Protection (IP): IP2X (standard)

more
