GWZC-9862 Incoming Line Auto-transfer Relay

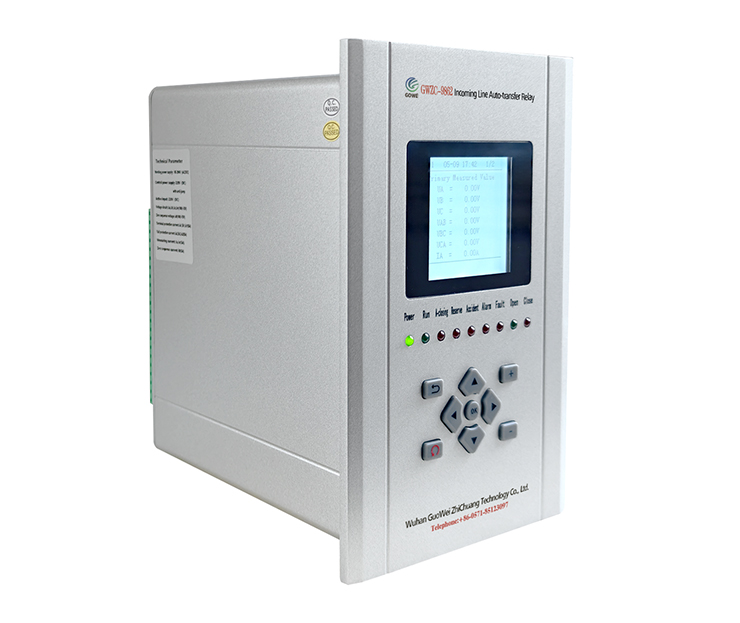

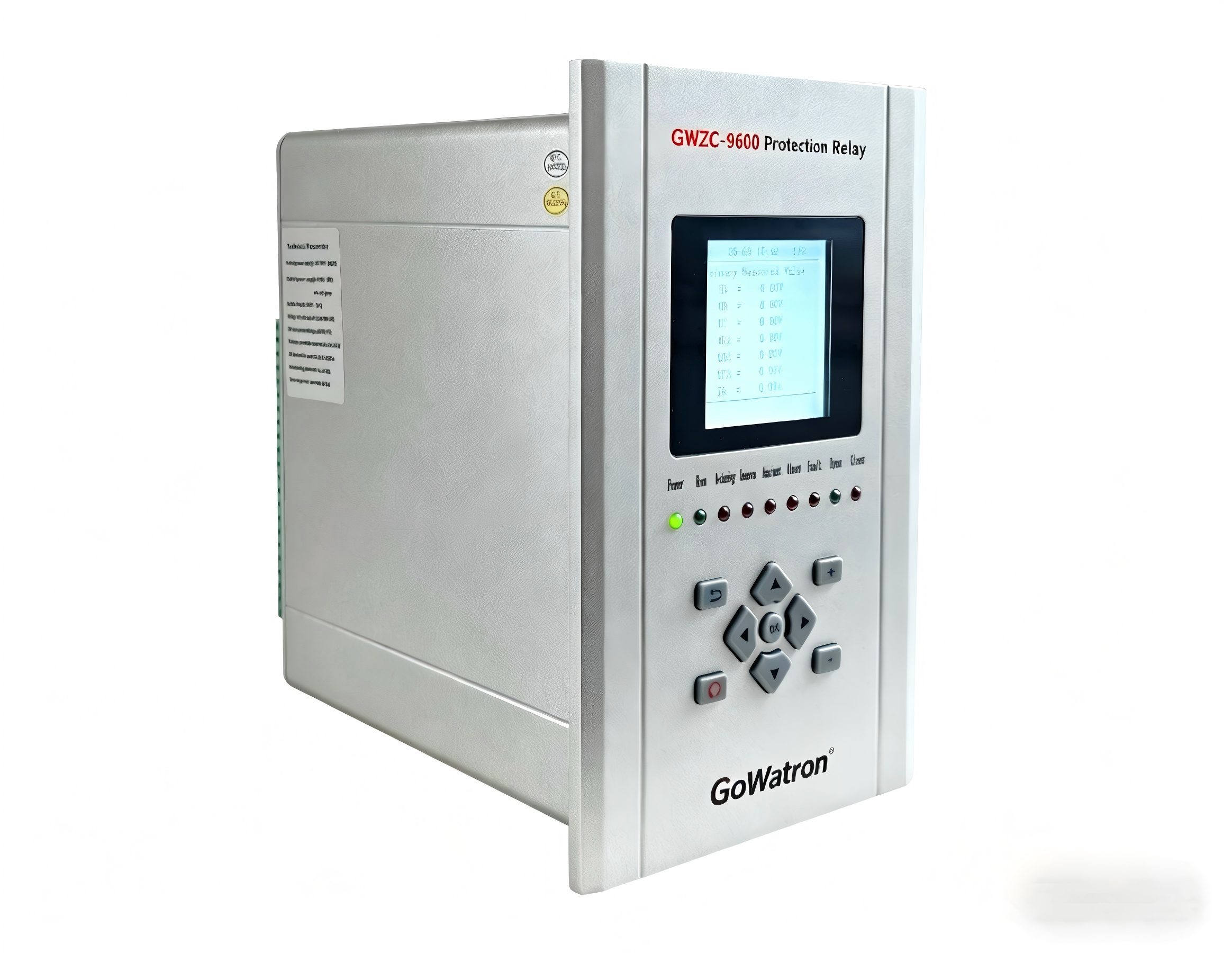

Incoming Line Auto-transfer Relay Side View

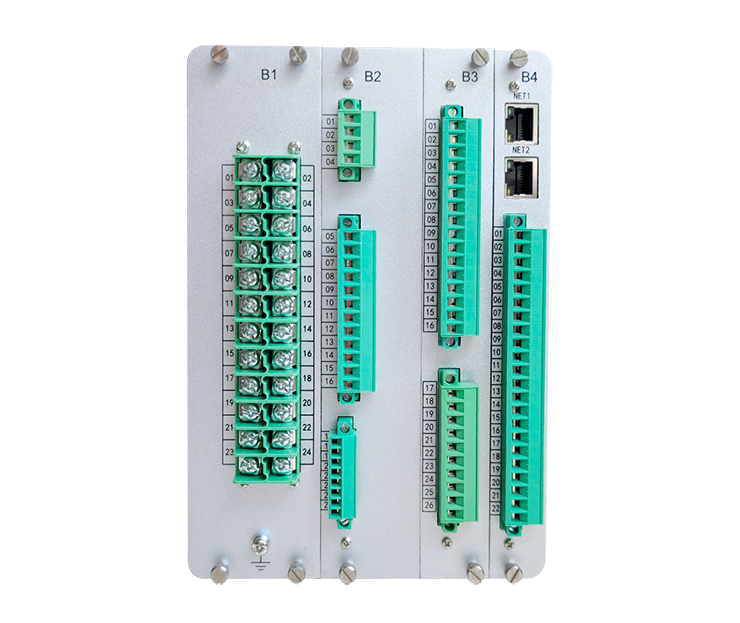

Incoming Line Auto-transfer Relay Rear View

GWZC-9862 Incoming Line Auto-transfer Relay (50/27)

Applicable Scope：The GWZC-9862 Auto-Transfer Relay provides seamless backup power switching (BZT) for substations and industrial plants (up to 35kV). It monitors voltage/current, enables fail-safe transfer with programmable delays, and prevents false trips. Installed in incoming line or bus-tie switchgear, it supports IEC 61850/Modbus and offers fault logging and EMI protection.

Product functions（ANSI）：50/27 | 50/51 | 51 | 49 | 74

Communication functions:Supported Protocols : IEC 60870-5-103 (over Ethernet) | MODBUS RTU (via RS-485) | IEC 61850 (Ed.2 or Ed.1, as applicable)
Interfaces:2× Ethernet Ports (IEEE 802.3 compliant, 10/100 Mbps) | 2× RS-485 Ports (ANSI/TIA-485-A standard, galvanically isolated)

Other functions : Support time synchronization via communication message, SNTP (Simple Network Time Protocol) time synchronization, and IRIG-B time synchronization. Support the dot matrix printing function with serial port communication. Support the fault recording function

Inquiry Consultation email

Product Introduction Technical Parameter Size

Product Introduction:

The GWZC-9862 Auto-Transfer Relay is designed for automatic backup power switching (BZT) in substations, industrial plants, and renewable energy systems (up to 35kV). It ensures continuous power supply by monitoring voltage/current, switching to backup sources upon failure, and preventing false trips with programmable delays. Installed in incoming line switchgear or bus-tie cabinets, it supports IEC 61850/Modbus communication and features fault recording, alarms, and robust EMI immunity (GB/T 14598 compliant) for reliable operation in harsh environments.

Product functionsANSI）：

1.Automatic Throw-Over for Feeder 1 (ANSI 50/27)
2.Automatic Throw-Over for Feeder 2 (ANSI 50/27)
3.Three-Step Overcurrent Protection (ANSI 50/51)
4.Inverse-Time Overcurrent Protection (ANSI 51)
5.Overload Protection (ANSI 49)
6.Control Circuit Supervision (ANSI 74)

Electrical Specifications

Power Supply:

● AC: 85-264V, 47-63Hz (≤15% THD)
● DC: 100-370V (≤5% ripple)

Rated AC Parameters:

● Voltage: 100V/√3 or 100V
● Current: 5A/1A
● Frequency: 50Hz

Overload Capacity:

● Current Circuit: 2×In continuous | 10×In (10s) | 40×In (1s)
● Voltage Circuit: 1.5×Un continuous

Power Consumption:

● Supply: <10W (static), ≤15W (trip)
● Current Circuit: ≤1VA/phase (5A) / ≤0.5VA/phase (1A)
● Voltage Circuit: ≤0.5VA/phase

Digital Output:

● Dry contact (8A@250VAC / 30VDC)
● Dielectric: 4kVAC (coil-contact), 1kVAC (open contact)
● Operating Time: 5ms (typ) / 8ms (max)
● Mechanical Life: 100k operations

Protection Performance

Operating Range:

● Voltage: 0.5-120V (phase)
● Current: 0.02-20×In
● Zero-Seq Current: 0.05-20A
● Frequency: 35-65Hz | Delay: 0-100s

Accuracy:

● Voltage/Current: ±2.5% or ±0.1V/±0.05A (whichever greater)
● Frequency: ±0.01Hz
● Settings: ±2.5%

Trip Time:

● Instantaneous: ≤35ms (≥1.2× setting)
● Time-Delayed: ≤1% of setting or 35ms

Measurement & Monitoring

Range:

● Voltage: 0.5-120V | Current: 0.02-1.2×In

Accuracy:

● V/I: ±0.2% | Frequency: ±0.01Hz | Other: 0.5%
● Time Sync: ≤2ms | SOE: ≤1ms
